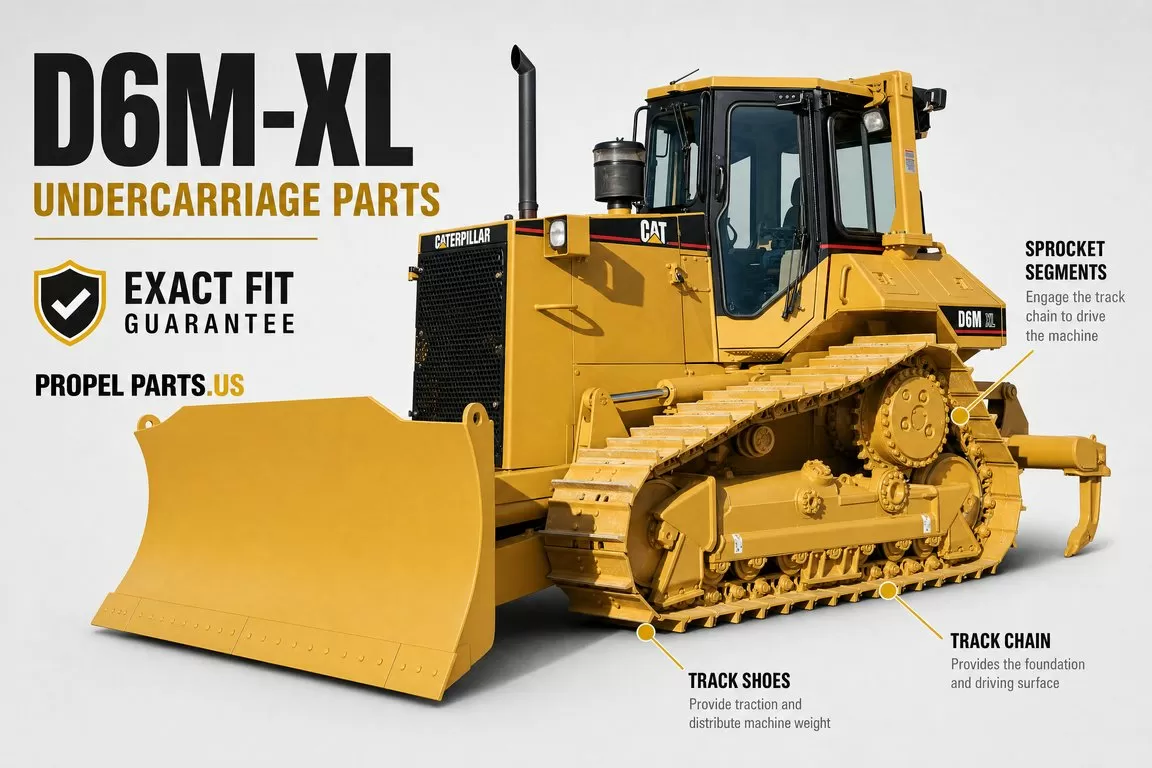

CAT D6M-XL Dozer Undercarriage Parts
Shop replacement undercarriage parts for Caterpillar D6M-XL dozers. The D6M-XL was produced in two undercarriage configurations — Conventional Track and SystemOne — and the parts required depend on which system your machine runs. If you are converting from SystemOne to Conventional, all components must be replaced as a complete set.
Select your undercarriage configuration below to find the exact parts for your machine. Every part we sell is backed by our Exact Fit Guarantee, plus same-day shipping on most orders.
Select Your Machine Configuration
-
Conventional Track
Serial Prefixes: 2YS, 3WN, 4HS, 5WR, 6LR, 9ZM -
SystemOne to Conventional Conversion
Serial Prefixes: 2YS, 3WN, 4HS, 5WR, 6LR, 9ZM — All components required for full conversion
About the CAT D6M-XL Undercarriage
The Caterpillar D6M-XL is a medium-weight crawler dozer built for grading, land clearing, and heavy pushing applications. Its undercarriage uses a 7.50" pitch track system with 3/4" bolt diameter, 119mm link height, and 65.0mm bushing O.D. These specifications are consistent across all serial prefixes covered on this page (2YS, 3WN, 4HS, 5WR, 6LR, 9ZM).
Caterpillar offered the D6M-XL with both a conventional track undercarriage and the SystemOne sealed and lubricated track system. Because SystemOne components are not interchangeable with conventional components, it is important to confirm your machine's configuration before ordering. If you are converting from SystemOne to Conventional, all undercarriage components — including track chains, shoes, rollers, idlers, and sprocket segments — must be replaced simultaneously.
All Caterpillar D6M-XL undercarriage parts sold by Propel Parts are manufactured to OEM specifications and covered by our Exact Fit Guarantee. Same-day shipping is available on most in-stock items.
