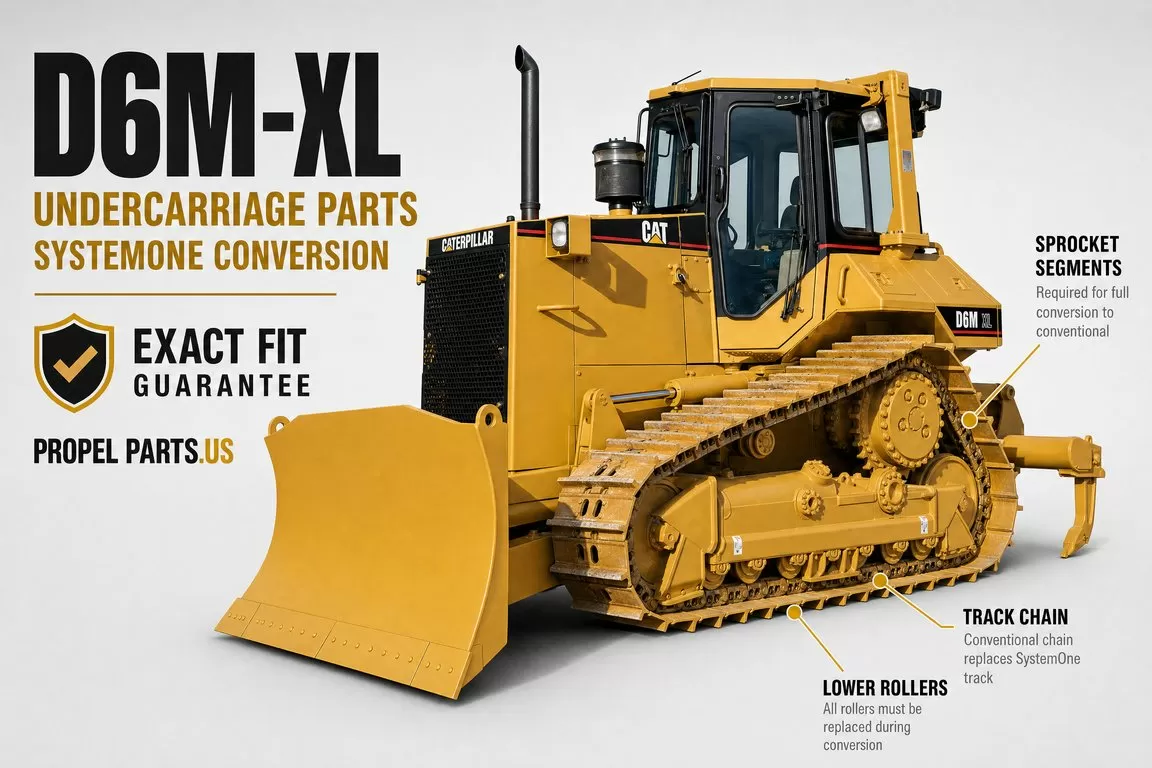

CAT D6M-XL — Systemone Conversion

The Caterpillar D6M-XL was offered with two undercarriage systems. The SystemOne (also called System One) is a sealed and lubricated track system designed for extended service intervals in specific applications. The conventional track undercarriage uses standard sealed and greased track chains and is the more widely supported configuration for parts availability and field service. The two systems are not interchangeable — all components must match the installed system type.

Yes. Caterpillar D6M-XL dozers can be converted from SystemOne to conventional undercarriage. However, the conversion requires replacing all undercarriage components simultaneously — track chains, track shoes, lower rollers, top carrier rollers, front and rear idlers, and sprocket segments. Partial replacements are not supported because SystemOne and conventional components are not interchangeable. Additionally, track guides, idler scrapers, and idler end guards typically require modification during the conversion.

A complete SystemOne to conventional conversion on the CAT D6M-XL requires the following components: Track Chain HD TLA SALT (OEM 1102976), Track Shoes in 22" (OEM 1061607) or 24" (OEM 1170615) width, Lower Rollers — Single Flange (OEM 1210824) and Double Flange (OEM 1210827), Top Carrier Rollers (OEM 6Y3908), Front and Rear Idlers (OEM 1901546), and Sprocket Segments (OEM 6I8078). All components must be replaced as a complete set.

Yes. According to Caterpillar service documentation, track guides, idler scrapers, and idler end guards typically require modification when converting a D6M-XL from SystemOne to conventional undercarriage. We recommend consulting a qualified Caterpillar dealer or certified technician before beginning the conversion to ensure all required modifications are identified and completed correctly.

The Caterpillar D6M-XL was produced with both SystemOne and conventional undercarriage configurations across the same serial number prefixes: 2YS, 3WN, 4HS, 5WR, 6LR, and 9ZM. The undercarriage type is not determined by the serial prefix alone — you must inspect the machine or consult the original build record to confirm which system is installed.

The CAT D6M-XL accepts 22" or 24" track shoes. When converting from SystemOne to conventional undercarriage, order the same shoe width as your machine's original configuration unless you are intentionally changing the shoe width for application reasons. Confirm the correct width before ordering. Propel Parts offers both 22" (OEM 1061607) and 24" (OEM 1170615) track shoes for the D6M-XL.

After converting a Caterpillar D6M-XL to conventional undercarriage, the track specifications are: Pitch 7.50", Bolt Diameter 3/4", Link Height 119mm, and Bushing Outside Diameter (O.D.) 65.0mm. These specifications apply to all serial prefixes covered by this guide: 2YS, 3WN, 4HS, 5WR, 6LR, and 9ZM.

Operators typically convert a Caterpillar D6M-XL from SystemOne to conventional undercarriage when the SystemOne components have reached end of life and conventional replacement parts offer better availability, lower cost, or easier field serviceability for their specific application. Conventional undercarriage components are more widely stocked and supported across the aftermarket supply chain.

No, you can place your order normally. After ordering, simply provide your machine serial number through our Exact Fit Guarantee process. Our team will verify compatibility before shipment to ensure the correct conversion components are supplied for your CAT D6M-XL dozer. This guide covers serial prefixes 2YS, 3WN, 4HS, 5WR, 6LR, and 9ZM.

Our Exact Fit Guarantee is designed to prevent ordering errors. After placing your order, provide your machine serial number and our team will verify compatibility before shipping. If a fitment issue is identified, we will work with you to ensure the correct conversion components are supplied for your CAT D6M-XL dozer. Every part is backed by our Exact Fit Guarantee, plus same-day shipping.
