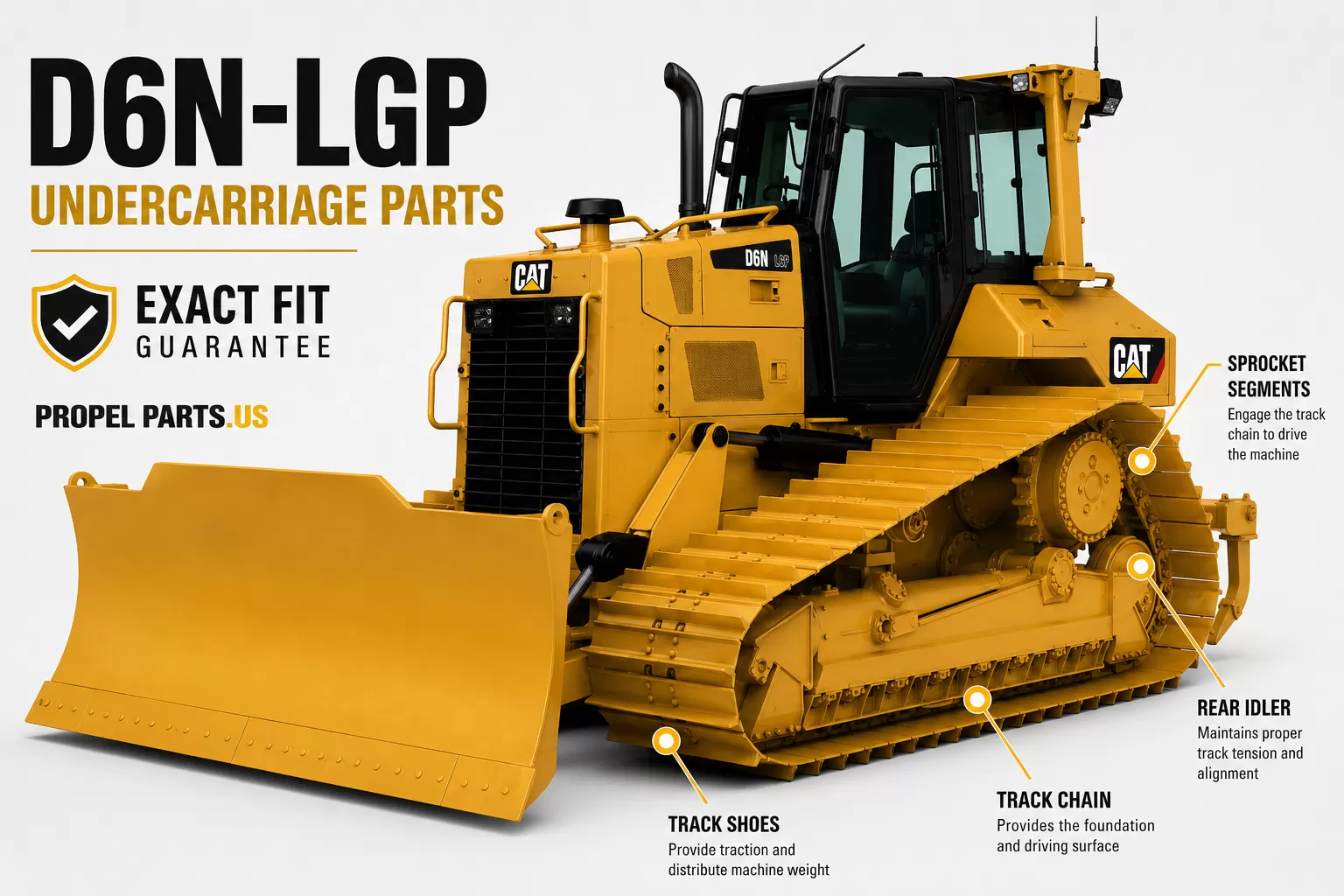

CAT D6N-LGP

Yes. The aftermarket D6N-LGP undercarriage parts offered by Propel Parts are engineered as direct replacement components for Caterpillar D6N-LGP dozers and are designed to meet or exceed OEM specifications for fit, function, and performance. Compatibility depends on machine configuration, serial number range, and whether the machine is equipped with a conventional undercarriage, SystemOne undercarriage, or a previous conversion. If you are unsure which configuration your machine uses, provide your serial number and our team can help identify the correct parts before shipment.

No. Place your order normally. After ordering, provide your machine serial number through our Exact Fit Guarantee process and our team will verify compatibility before shipment. If a compatibility issue is identified before shipment, we will work with you to ensure the correct parts are supplied. This guide applies to D6N-LGP conventional undercarriage machines with serial prefixes ALR661 & up, ALY1566 & up, CCG406 & up, CCS404 & up, DJY, GHS, PBA, P5W, SGG, and SC6.

Common replacement components include D6N-LGP Track Chains, D6N-LGP Track Shoes, D6N-LGP Bottom Rollers, D6N-LGP Carrier Rollers, D6N-LGP Front Idlers, D6N-LGP Rear Idlers, D6N-LGP Sprocket Segments, and D6N-LGP Recoil Springs. These components are commonly replaced during routine maintenance and complete undercarriage rebuilds.

A complete D6N-LGP undercarriage rebuild commonly includes 2 track chains, 90 track shoes, 8 single-flange bottom rollers, 8 double-flange bottom rollers, 2 carrier rollers, 2 front idlers, 2 rear idlers, 2 sets of sprocket segments, and 1 recoil spring assembly. Depending on machine condition, additional components such as track hardware, idler hardware, track adjuster components, seals, caps, blocks, and other related undercarriage parts may also be replaced.

When replacing track chains, inspect track shoes, sprocket segments, bottom rollers, carrier rollers, front idlers, rear idlers, recoil spring components, and track adjuster components. Replacing worn components together can maximize undercarriage life and reduce premature wear.

D6N-LGP track shoes are commonly available in 24-inch, 28-inch, 30-inch, and 34-inch widths. Track shoe selection depends on machine configuration, flotation requirements, and operating conditions.

Conventional undercarriages use traditional track chains, rollers, idlers, and sprocket segments. SystemOne undercarriages use a different design and many components are not interchangeable with conventional undercarriage systems. This guide covers machines currently equipped with a conventional undercarriage. See our D6N-LGP SystemOne Conversion Guide (Coming Soon).

Yes. Many D6N-LGP machines have been successfully converted from a SystemOne undercarriage to a conventional undercarriage configuration. Depending on the machine, a conversion may require additional components beyond the standard track chains, rollers, idlers, and sprocket segments. For additional information, see our D6N-LGP SystemOne Conversion Guide (Coming Soon).

Two roller styles may be found on D6N-LGP conventional undercarriages. The latest design uses separate end caps. The former design uses integrated end collars. Machines equipped with former-design rollers may require additional components when converting to the latest-design roller arrangement.

Our Exact Fit Guarantee is designed to help prevent ordering errors. After placing your order, provide your machine serial number and our team will verify compatibility before shipment whenever possible. If a fitment issue is identified, we will work with you to identify the correct replacement part and help resolve the issue.

Different serial number ranges may use different rollers, idlers, hardware, and undercarriage configurations. Serial number verification helps ensure the correct components are supplied.
