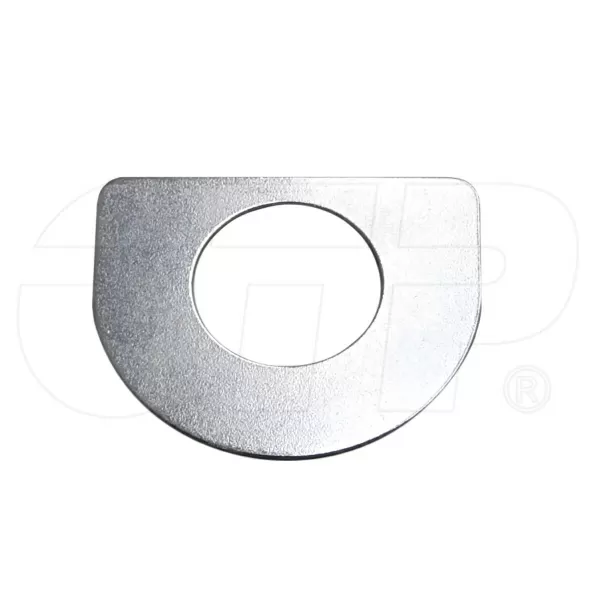

New 9W7602 Shim Replacement suitable for Caterpillar Equipment
- New Shim Replacement suitable for Caterpillar Equipment
- Made to USA Specification
Buy with Confidence: All parts are covered by our warranty
Exact Fit Guarantee
This part is guaranteed to fit your machine.
Wrong Part?
We'll overnight correct part at no cost to you.
Description for 9W7602 Shim
â–¶Specification for 9W7602 Shim
â–¶Exact Fit Guarantee for 9W7602 Shim
â–¶| Models | 824G, 824G II, 824H, 824K, 825C, 825G, 825G II, 825H, 825K, 826C, 834B, 834G, 834H, 834K, 836, 8S, D6R III, D6T, D6T LGP, D6T LGPPAT, D6T XL, D7E, D7E LGP, D7G, D7G2, D7H, D7R, D7R II, D7R XR, D8N |
|---|---|
| Dimensions | 2.32x2.76x0.04 |
-
At the beginning, I experienced significant delays and communication issues regarding my order, which honestly caused serious concern because the parts were urgently needed for an important project.
However, after continuous follow-up, the Propel Parts team handled the matter professionally, provided shipment tracking, and the parts finally arrived successfully.
I especially appreciate their willingness to communicate, acknowledge the issue, and continue working toward resolving the situation.
In international business, delays can sometimes happen, but what matters is the final commitment to resolving the issue properly.
Thank you to Daniel and the team, and hopefully future transactions will be smoother for both sides. -
GREAT CUSTOMER SERVICED
WANTED TO THANK PROPEL PARTS FOR THEIR ATTENTION TO AN URGENT MATTER I HAD. THEY RESPONDED QUICKLY & RESOLVED IT. I ALSO WANTED TO MENYTION THAT OUR CUSTOMER'S ARE VERY HAPPY WITH THE PARTS EWE HAVE BEEN ORDERING FROM PROPEL. WE WILL DEFINITLEY CONTINUE TO DO BUSINESS. -
100% excelente
-
Online order.
I had a good experience this morning I placed an online order and everything went smoothly. The staff at propel parts has always been helpful in the past when I have been looking for harder to find parts or something that wasn’t listed online. -
Great site and price
Frequently Asked Questions
What does the Caterpillar 9W7602 shim do?
The 9W7602 shim is a precision spacer used to adjust clearances, align components, and control preload in assemblies such as valve trains, bearings, and gear housings. Correct shim selection is essential for achieving proper tolerances and ensuring components operate within their designed performance range.
How do I know which thickness I need?
Shim thickness selection depends on measured clearances within the specific assembly being serviced. Use a precision dial indicator or feeler gauge to determine the actual gap, then select the appropriate shim thickness as specified in the Caterpillar service manual. If you are unsure, reach out to Propel Parts for help verifying fitment.
Can a worn shim cause engine or drivetrain damage?
Yes. An undersized or over-compressed shim can lead to incorrect clearances, excess vibration, accelerated wear on mating surfaces, and in some cases, catastrophic component failure. Replacing shims at the correct service intervals or when clearances are out of specification is a cost-effective way to prevent expensive repairs.
What material is the 9W7602 shim made from?
Shims used in CAT equipment are typically manufactured from high-quality hardened steel, selected for consistent thickness, corrosion resistance, and the ability to maintain dimensional stability under heat and pressure. The 9W7602 is built to meet OEM specifications for material and dimensional accuracy.
Is this shim reusable after disassembly?
Shims can often be reused if they are undamaged and show no signs of deformation, scoring, or corrosion. However, it is best practice to measure the shim thickness with a micrometer after removal to confirm it still meets the required specification before reinstallation.
What models is the 9W7602 shim compatible with?
This shim is used across multiple Caterpillar equipment families. Check your machine's parts manual for the correct part number for your specific model and serial number. Please reach out to Propel Parts for help verifying fitment if the manual is unavailable or the compatibility is unclear.
Does Propel Parts offer a warranty on this shim?
Yes ??? all parts sold by Propel Parts carry a 1-year unlimited mileage warranty covering manufacturing defects. The 9W7602 shim is a high-quality aftermarket component that meets or exceeds OEM expectations. For additional fasteners or hardware needed during the same service, explore our CAT hardware parts catalog for a full selection.
This 9W7602 Shim is compatible with the following models:
824G, 824G II, 824H, 824K, 825C, 825G, 825G II, 825H, 825K, 826C, 834B, 834G, 834H, 834K, 836, 8S, D6R III, D6T, D6T LGP, D6T LGPPAT, D6T XL, D7E, D7E LGP, D7G, D7G2, D7H, D7R, D7R II, D7R XR, D8N & more...
