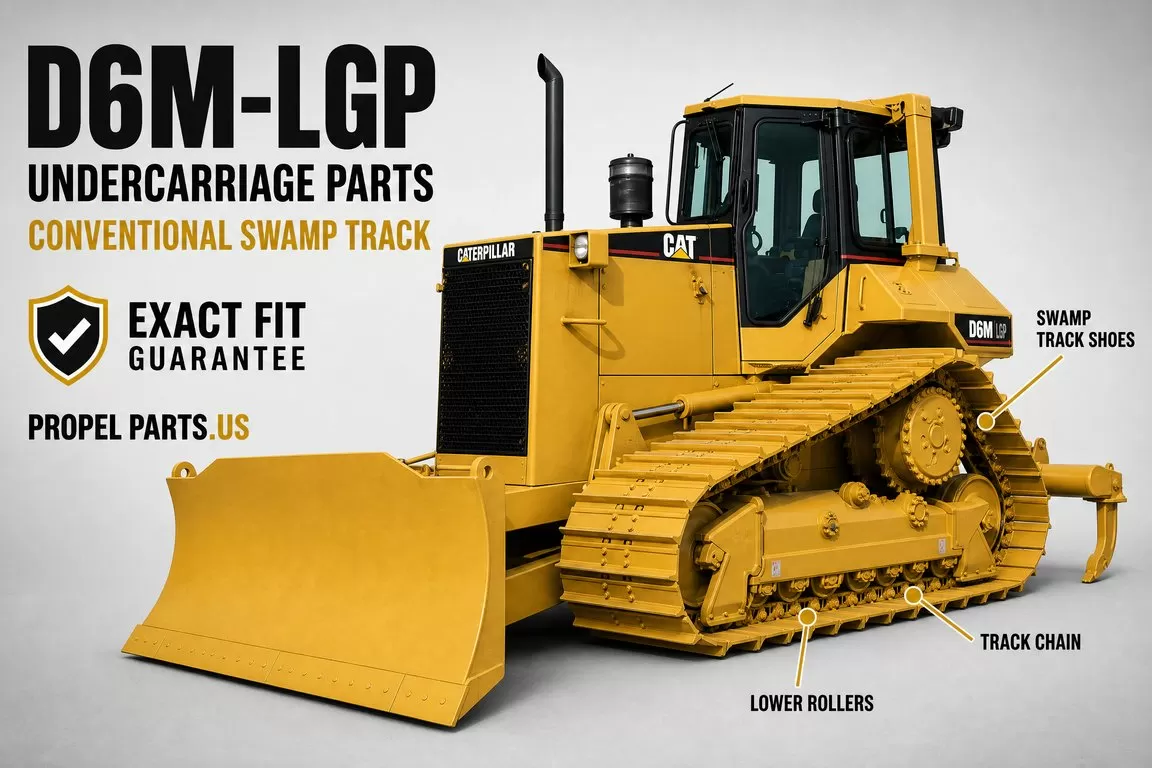

Shop D6M LGP undercarriage parts for Caterpillar D6M-LGP dozers equipped with a conventional track undercarriage with swamp application shoes. This guide covers the serial number ranges below and helps identify D6M LGP track chains, D6M LGP track rollers, and other major components commonly replaced during undercarriage maintenance, repair, and complete undercarriage rebuilds.
Order normally. After ordering, provide your machine serial number through our Exact Fit Guarantee process and our team will verify compatibility before shipment.
➜ Ready to shop? Review the guide below, then browse the product listings below for available D6M-LGP undercarriage parts, pricing, and current availability.
CAT D6M-LGP Serial Prefix Guide
This guide covers the following Caterpillar D6M-LGP serial prefixes:
The components below represent the most commonly replaced D6M-LGP undercarriage parts for machines running swamp-style track shoes. Click any linked component to view pricing and availability.
In addition to the major undercarriage components shown above, we may also offer mounting hardware, track hardware, idler hardware, track tensioning components, track guiding guards, seals, and related undercarriage parts.
Track Shoe Options: D6M-LGP swamp track shoes are available in 34" Swamp Style. The swamp shoe (OEM 1070715) must be created in the catalog before its link can be filled in.
➜ Ready to order? Browse the product listings below to view available Caterpillar D6M-LGP track chains, track shoes, rollers, idlers, sprockets, track tensioning components, hardware, pricing, and current availability.
What To Inspect During an Undercarriage Rebuild
Replacing Track Chains? Inspect track shoes, sprockets, rollers, and idlers.
Replacing Bottom Rollers? Inspect carrier rollers, idlers, and chain wear.
Replacing Idlers? Inspect recoil spring and track tensioning components.
Commonly Purchased Together
Replacing Track Chains?
Customers commonly inspect or replace:
Track shoes
Sprockets
Track hardware
Replacing Bottom Rollers?
Customers commonly inspect or replace:
Top carrier rollers
Front idlers
Track chain wear
Planning a Complete Undercarriage Rebuild?
A typical rebuild may include:
• Track chains
• Track shoes
• Bottom rollers
• Front idlers
• Carrier rollers
• Sprockets
Exact Fit Guarantee
Order with confidence. After placing your order, provide your machine serial number through our Exact Fit Guarantee process and our team will verify fitment before shipment. If a fitment issue is identified before shipment, we will work with you to ensure the correct parts are supplied.
Are these aftermarket swamp undercarriage parts compatible with my CAT D6M-LGP dozer?
Yes. The aftermarket CAT D6M-LGP swamp undercarriage parts offered by Propel Parts are engineered as direct replacement components and are designed to meet or exceed OEM specifications for fit, function, and performance. This guide covers D6M-LGP machines with serial prefixes 2RN, 4GS, 4JN, and 5NR configured for swamp applications with 34" swamp-style track shoes. If you are unsure, provide your serial number and our team will verify fitment before shipment.
Do I need to provide my serial number before ordering CAT D6M-LGP swamp undercarriage parts?
No, you can place your order normally. After ordering, simply provide your machine serial number through our Exact Fit Guarantee process. Our team will verify compatibility before shipment to ensure the correct parts are supplied. This guide covers Caterpillar D6M-LGP swamp application machines with serial prefixes 2RN, 4GS, 4JN, and 5NR.
What makes the CAT D6M-LGP swamp undercarriage different from the standard conventional setup?
The D6M-LGP swamp configuration uses specialized 34" swamp-style track shoes (OEM 1070715) instead of standard single grouser shoes. Swamp shoes have a wider, flatter profile that distributes machine weight over a larger surface area, providing greater flotation in soft, muddy, or wet ground conditions. All other undercarriage components — track chain, rollers, idlers, sprockets, and recoil springs — are the same as the standard conventional setup.
What is included in a complete CAT D6M-LGP swamp undercarriage rebuild?
A complete CAT D6M-LGP swamp undercarriage rebuild requires 2 track chains, 90 swamp-style track shoes per side, lower rollers (quantity varies by position), 2 top carrier rollers per side, 2 idler assemblies, 2 sprocket segment groups, and 2 recoil springs. The key difference from a standard rebuild is the use of 34" swamp-style shoes instead of standard grouser shoes.
What track shoe is used on the CAT D6M-LGP swamp configuration?
The CAT D6M-LGP swamp configuration uses a 34" swamp-style track shoe (OEM 1070715). This shoe has a wider, flatter profile than standard single grouser shoes and is designed for operation in wet, muddy, or soft ground conditions where maximum flotation is required.
What should be inspected when replacing CAT D6M-LGP swamp track chains?
When replacing your CAT D6M-LGP track chains on a swamp-configured machine, inspect the swamp track shoes, sprocket segments, lower rollers, top carrier rollers, and idlers. Replacing worn mating components at the same time helps maximize the lifespan of your new track chains and prevents premature wear.
What are the track specifications for the CAT D6M-LGP swamp undercarriage?
The track specifications for the CAT D6M-LGP swamp undercarriage are the same as the standard conventional setup: Pitch 7.50", Bolt Diameter 3/4", Link Height 119mm, and Bushing Outside Diameter (O.D.) 65.0mm. The swamp configuration differs only in track shoe style, not in chain or hardware specifications.
Are track bolts and nuts included with CAT D6M-LGP swamp track shoes?
Track hardware is typically sold separately. When replacing Caterpillar D6M-LGP swamp track shoes, you will need the appropriate track bolts and nuts. It is recommended to use new hardware when installing new track shoes to ensure proper torque and retention.
What parts do I need to replace the full undercarriage on a CAT D6M-LGP swamp machine?
If you're doing a complete undercarriage replacement on a Caterpillar D6M-LGP configured for swamp applications, here's a full parts reference based on standard machine configuration:
Main Undercarriage Components
Component
Qty per Machine
Track Chain — HD TLA SALT (46L)
2 (1 per side)
Track Shoes — 34" Swamp Style
90 per side
Lower Roller — Single Flange
Varies per side
Lower Roller — Double Flange
Varies per side
Top Carrier Roller
2 per side
Front & Rear Idler
2 total (1 per side)
Sprocket Segment Group
2 (1 per side)
Recoil Spring
2 (1 per side)
What happens if I order the wrong CAT D6M-LGP swamp undercarriage part?
Our Exact Fit Guarantee is designed to prevent ordering errors. After placing your order, provide your machine serial number and our team will verify compatibility before shipping. If a fitment issue is identified, we will work with you to ensure the correct replacement parts are supplied for your CAT D6M-LGP swamp-configured dozer.
