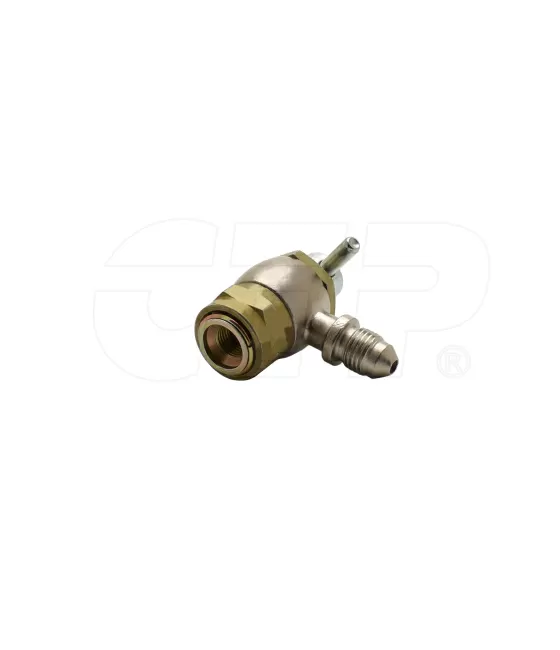

1S8938 Chuck for CAT Equipment

The 1S8938 CAT chuck is a nitrogen charging chuck used to securely connect to a valve or ride control accumulator in hydraulic systems. It allows nitrogen gas to be charged into the system while providing a tight, leak-free seal, helping maintain proper pressure for ride control and other hydraulic applications.

Here’s a general guide for installation:

1. Turn off the machine and safely relieve any system pressure before working on the hydraulic accumulator or valve.
2. Locate the nitrogen charging valve or accumulator port where the chuck will attach.
3. Connect the 1S8938 chuck to the port, ensuring a snug, secure fit.
4. Ensure all seals and threads are properly aligned to prevent leaks.
5. Attach the nitrogen source and begin charging according to your service manual instructions.
6. Once charging is complete, carefully disconnect the chuck and check for secure sealing.

The 1S8938 CAT chuck is used on Caterpillar equipment where nitrogen-charged hydraulic accumulators including ride control systems require a charging connection. These are common on larger machines such as wheel loaders, excavators, or articulated trucks equipped with ride control systems. Always verify part compatibility with your machine’s service or parts manual before ordering. Check your manual or reach out to Propel Parts for help verifying fitment.

Yes, this 1S8938 chuck is manufactured to match or exceed OEM specifications for fit, sealing performance, and durability. Quality aftermarket versions are designed and tested to ensure reliable performance comparable to the original Caterpillar part.

Inspect the charging chuck whenever you perform service on the hydraulic accumulator or related pressure systems. Check for secure connection points, wear on sealing surfaces, and any signs of leaks. Replace the chuck if any damage, wear, or loss of sealing integrity is found.

Typical indicators include:

1. Visible nitrogen or hydraulic fluid leaks around the valve or chuck connection
2. Difficulty maintaining pressure during accumulator charging
3. Damaged threads or seals on the chuck surface
4. Loose or inconsistent connections during use

A quality chuck like the 1S8938 ensures a secure, leak-free connection when charging nitrogen into hydraulic components. Proper sealing prevents pressure loss, supports optimal ride control system performance, and helps protect internal hydraulic components from premature wear or malfunction. Using parts that meet or exceed OEM expectations improves reliability and contributes to long-term durability of your machine’s hydraulic system.
