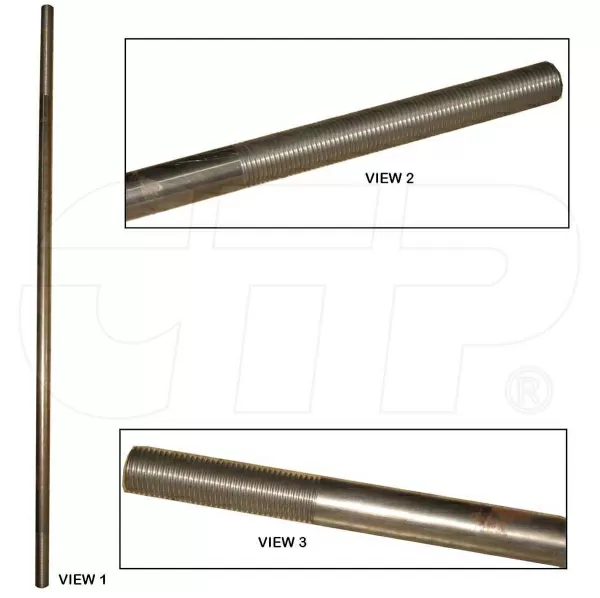

New 8D5949 Bar-Spreader Replacement suitable for Caterpillar Equipment

The 8D5949 bar-spreader is a long metal bar used on Caterpillar motor graders and similar heavy equipment to help spread material evenly across a work surface, such as soil or gravel, during grading and leveling operations. It provides reinforcement and ensures material gets distributed consistently.

The 8D3902 oil seal is a lip-type sealing component that prevents oil or lubricant from leaking out of rotating shafts or housings, while also keeping contaminants such as dirt and moisture from entering internal systems. It helps maintain proper lubrication and protects bearings, gears, and other critical parts.

Here’s a general guide for proper installation:

1. Park the machine on a level surface and shut off the engine.
2. Safely support the blade assembly or back-blade area if needed.
3. Remove any worn or damaged bar-spreader by unfastening the mounting hardware.
4. Align the new 8D5949 bar-spreader with the bolt holes on the grader or implement frame.
5. Insert the bolts or studs and torque them to the specifications provided in your equipment’s service manual.
6. Check that the bar-spreader sits flush and secure before returning the machine to service.

Here’s a general guide for proper installation:

1. Park the machine on level ground, turn off the engine, and relieve any system pressure.
2. Access the component where the old seal is installed and carefully remove it.
3. Clean the shaft and seal groove to remove dirt, debris, and old lubricant.
4. Lightly lubricate the sealing lip with compatible oil.
5. Press the new 8D3902 oil seal into place using a seal driver or press, ensuring it seats evenly and fully.
6. Reassemble surrounding parts and verify that the seal prevents leaks once the system is pressurized.

The 8D5949 bar-spreader fits a wide range of Caterpillar graders and machines where this part number is specified. Typical compatible models include 120G, 120H, 12G, 12H, 140G, 140H, 140K, 143H, 160G, 160H, and similar motor graders and earthmoving equipment. Verify fitment with your parts manual before ordering. Please reach out to Propel Parts for help verifying fitment.

The 8D3902 oil seal fits many Caterpillar machines and engines where this part number is specified. It is compatible with models such as 12G, 12H (ES/NA), 12K, 130G, 140G, 140H (ES/NA), 140K, 140M, 143H, 160G/H (ES/NA), 160K/M, 163H (NA), and with engine platforms like 3176C, 3304, 3306, C-9, C7, and C9. Verify fitment in your service manual before ordering.  If you are still unsure, reach out to Propel Parts, our team will be happy to help you verify if this part fits your equipment.

Yes, the 8D5949 bar-spreader is manufactured to meet or exceed OEM quality standards. Aftermarket versions undergo quality checks to ensure they match the performance and fit of the original Caterpillar component, offering reliable strength and durability in grading applications.

Yes, this 8D3902 oil seal is manufactured to match or exceed OEM specifications for quality and performance. Aftermarket versions are quality-checked to ensure they fit correctly and perform like the original Caterpillar component, helping resist leakage and extend service life.

Inspect the bar-spreader during routine maintenance or when servicing the grader blade and related components. Look for signs of bending, cracking, or excessive wear, especially after heavy use. Replace the bar-spreader if you notice damage that could affect spreading performance or stability.

Oil seals should be inspected during routine maintenance or whenever related assemblies are serviced. Look for signs of leakage, hardening, cracking, or wear. Replace the seal if any damage or deterioration is found to help maintain proper lubrication and prevent contamination.

Typical indicators include:

1. Visible bending or deformation along the bar
2. Cracks or breaks in the steel
3. Uneven material distribution during grading
4. Loose connections or worn fastener holes

Typical indicators include:

1. Visible oil leaks around the seal area
2. Loss of lubrication or low fluid levels
3. Contaminants like dirt or moisture around internal components
4. Hardened, cracked, or deformed seal lip

A quality bar-spreader ensures consistent and even distribution of material across the surface being graded. Using parts that meet or exceed OEM specifications improves grading precision, reduces wear on blade components, and contributes to smoother, more efficient operation of the machine.

A quality oil seal ensures proper fluid containment and prevents contamination in engines, gearboxes, or hydraulic systems. Using seals that meet or exceed OEM specifications improves equipment reliability, reduces downtime due to leaks, and contributes to longer component life.
